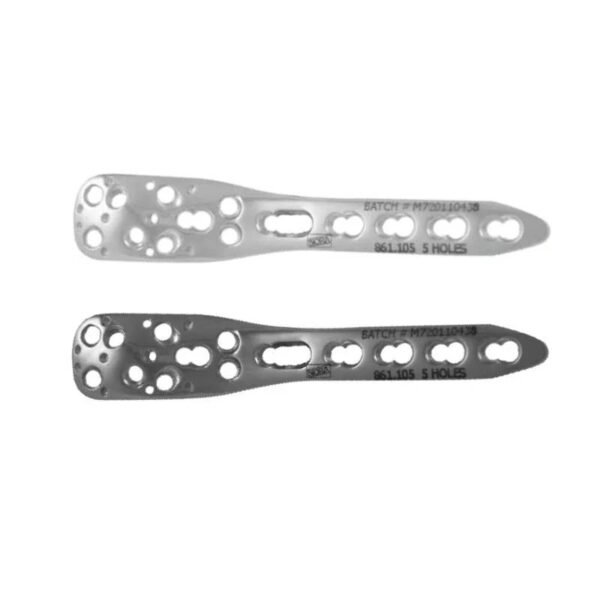

PHMA Locking Plate 3.5/ 4.0mm (Proximal Humeral Multi Angle) – Short

Indications:

Dislocated Fractures of the Proximal Humerus, Including Fractures Involving Osteopenic Bone.
Pseudarthrosis in Proximal Humerus.
Osteotomies in the Proximal Humerus.

Following Screws are to be use with Above Plates:

A) 3.5mm Locking Head Screw – Self Tapping

Stainless Steel	Hex Drive	Titanium
Cat No.	Size	Cat No.
102.310 to 102.380	10mm to 80mm	Ti.102.310 to Ti.102.380

Stainless Steel	Star Drive	Titanium
Cat No.	Size	Cat No.
102.410 to 102.480	10mm to 80mm	Ti.102.410 to Ti.102.480

B) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping

Stainless Steel	Hex Drive	Titanium
Cat No.	Size	Cat No.
105.512 to 105.580	12mm to 80mm	Ti.105.512 to Ti.105.580

Stainless Steel	Star Drive	Titanium
Cat No.	Size	Cat No.
105.612 to 105.680	12mm to 80mm	Ti.105.612 to Ti.105.680

C) Cortical Screw 3.5mm Dia. – Self Tapping

Stainless Steel	Hex Drive	Titanium
Cat No.	Size	Cat No.
102.210 to 102.296	10mm to 100mm	Ti.102.210 to Ti.102.300

D) Cancellous Screw 4.0mm Dia. Short Thread

Stainless Steel	Hex Drive	Titanium
Cat No.	Size	Cat No.
104.010 to 104.085	10mm to 85mm	Ti.104.010 to Ti.104.085

E) Cancellous Screw 4.0mm Dia. Full Thread

Stainless Steel	Hex Drive	Titanium
Cat No.	Size	Cat No.
105.010 to 105.085	10mm to 85mm	Ti.105.010 to Ti.105.085

Following Instruments to be use with above Plate:

Cat No.	Description
260.281	Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated
804.110	LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm
804.121	Tap for 3.5mm Locking Head Screws
804.163	Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.168	Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm)
260.250	Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long
264.025	Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length50mm, Total Length 110mm
260.270	Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long
264.037	Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm
301.040	Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle
301.026	Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws)
301.025	Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws)
303.010	Small Depth Gauge
XP.301.081	Star Drive Screw Driver – 2.5mm Tip/T-15

Following Size of 3.5 MM Small Locking Compression Plate are available in Stainless Steel & Titanium Material.
