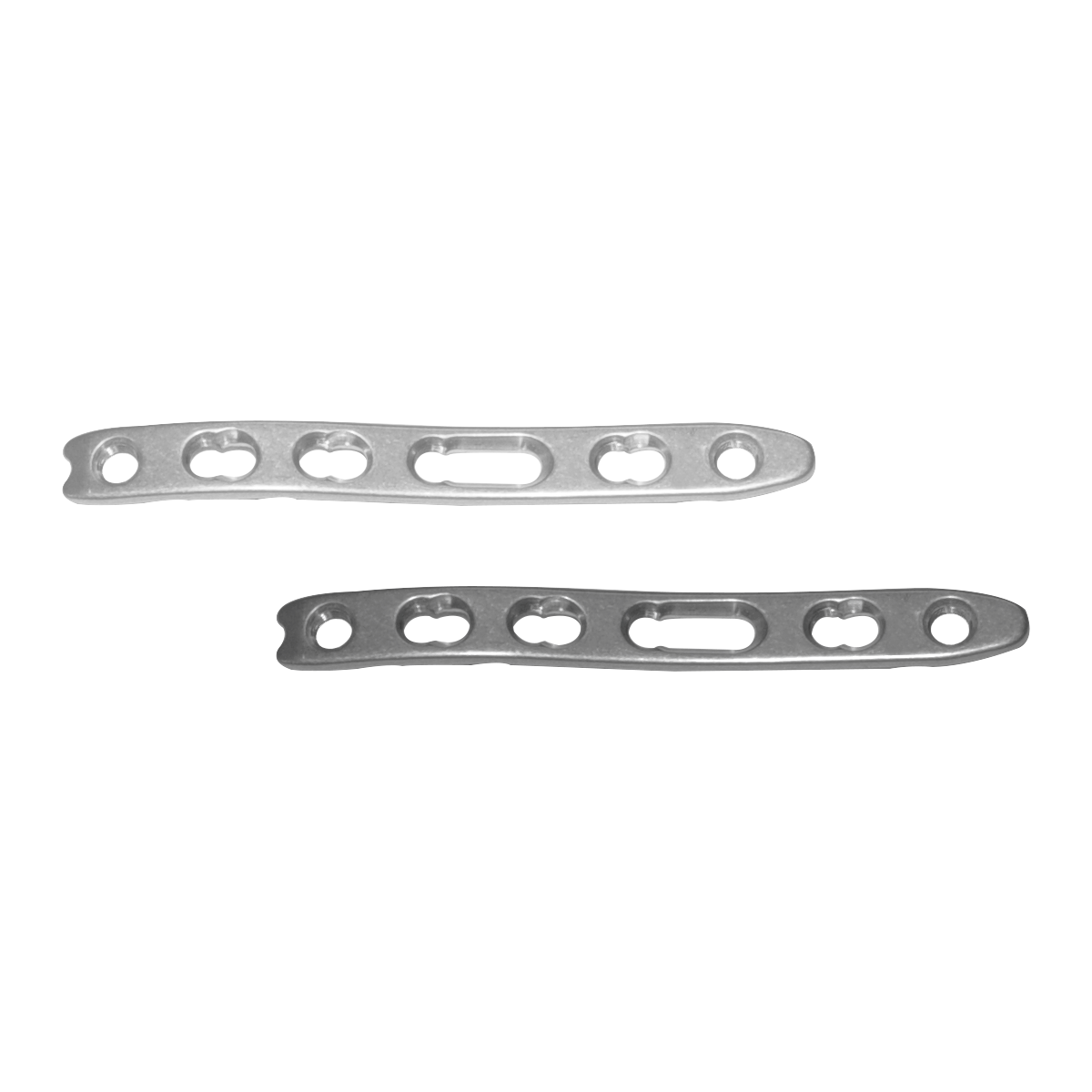

Locking Dorsal Distal Radius Straight Plate 2.7mm
Indications:
-
Complex Intra – Articular and Extra – Articular Fractures of Distal Radius.
-
Osteotomies of Distal Radius.
(The Two Plate Technique of Dorsal Fixation. This Offers a Strong Construct for Complex Distal Radius Fractures).
(T-Plate, L-Plate, Oblique L Plate & Straight Plate are used in the Dorsal Two Plate Technique).
Description
Following Screws are to be use with above Plates:
A) 2.7mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.310 to 101.350 | 10mm to 50mm | Ti.101.310 to Ti.101.350 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.410 to 101.450 | 10mm to 50mm | Ti.101.410 to Ti.101.450 |
B) Cortical Screw 2.7mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.106 to 101.140 | 6mm to 40mm | Ti.101.106 to Ti.101.140 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.710 to 101.740 | 10mm to 40mm | Ti.101.710 to Ti.101.740 |

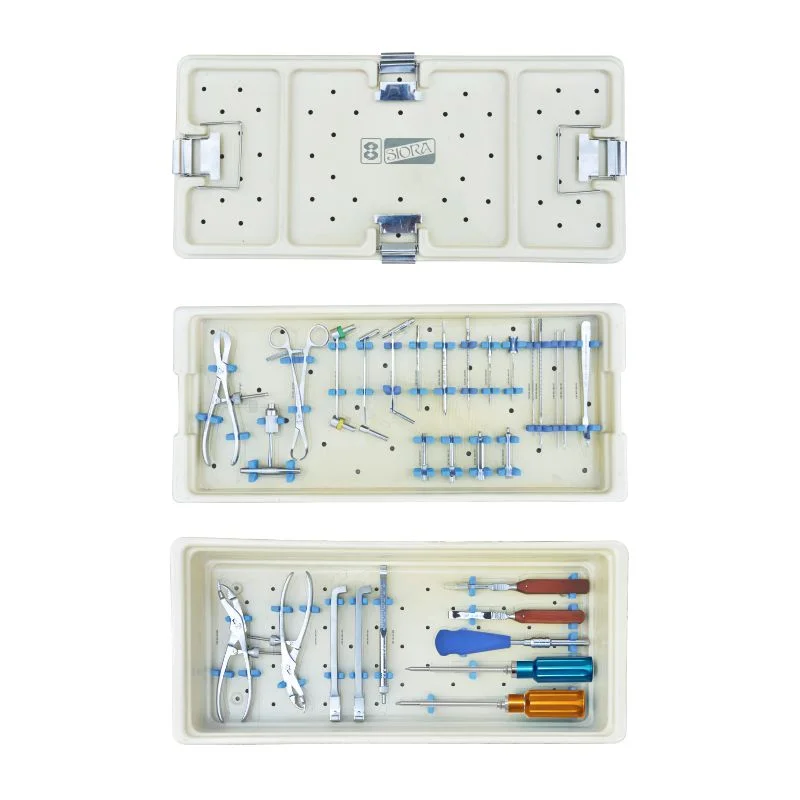

Following Instruments to be use with above Plate:
| Cat No. | Description |
|---|---|
| 260.210 | Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long |
| 264.020 | Bone Tap Quick Coupling End Dia 2.7mm, Thread Length 33mm, Total Length 100mm |
| 301.024 | Hexagonal Screw Driver With Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking screws) |
| 301.031 | Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 301.040 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 311.004 | Mini Depth Gauge (Measuring Length 40mm) |
| 804.120 | LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit |
| 804.122 | Tap for 2.7mm Locking Head Screws |
| 804.162 | Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm) |
| 804.166 | Hexagonal Screw Driver Q.C.End Shaft, 2.0mm Tip (for Torque Handle 0.8Nm) |
| XP.301.080 | Small Star Drive Screw Driver 2mm Tip / T-8 |
Following Size of Locking Dorsal Distal Radius Straight Plate 2.7mm are available in Stainless Steel & Titanium Material.
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
|---|---|---|
| 885.005 | 5 Holes | Ti.885.005 |
| 885.006 | 6 Holes | Ti.885.006 |
