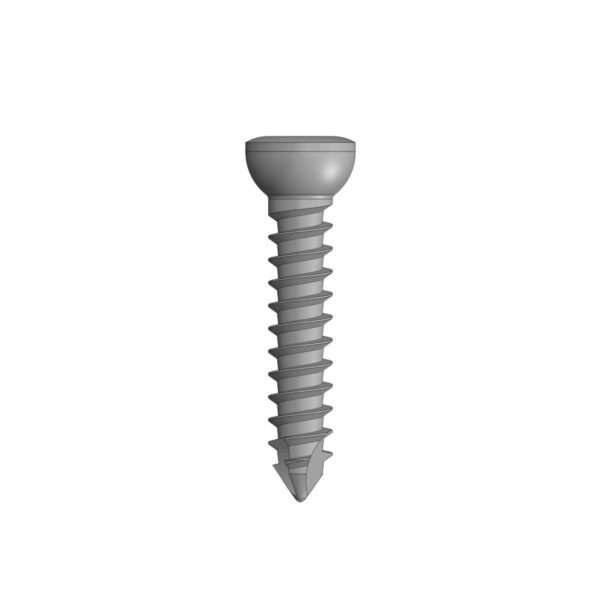

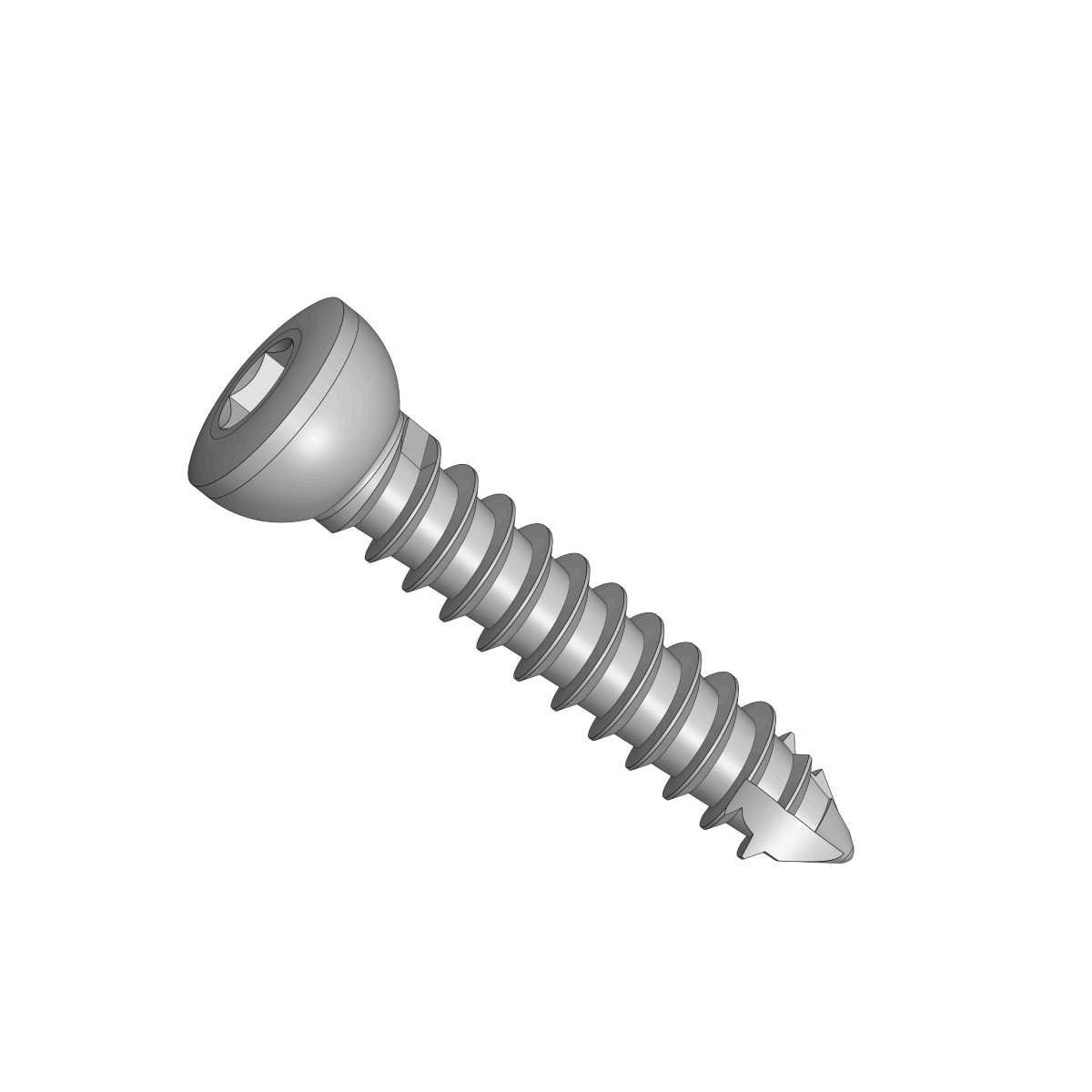

3.5mm Dia Cortical Screw – Self Tapping (HexDrive)
| S.NO | CORRESPONDING INSTRUMENTS TO BE USE: | CAT. NO. |
|---|---|---|
| 1 | Drill Bit – S.S. Quick Coupling End Dia. 2.5mm, Length 115mm | 260.250 |
| 2 | Bone Tap with T-Handle Dia. 3.5mm, Thread Length 50mm, Total Length 125mm | 263.025 |
| 3 | Hexagonal Screw Driver 2.5mm Tip – Silicon Handle | 301.040 |
| 4 | Screw Driver Shaft Quick Coupling End 2.5mm Tip | 301.060 |
| 5 | Depth Gauge – Small | 303.010 |
Description
| Cat No. Stainless Steel |
Length(mm) | Cat No. Titanium |
| 102.210 | 10 | Ti. 102.210 |
| 102.212 | 12 | Ti. 102.212 |
| 102.214 | 14 | Ti. 102.214 |
| 102.216 | 16 | Ti. 102.216 |
| 102.218 | 18 | Ti. 102.218 |
| 102.220 | 20 | Ti. 102.220 |
| 102.222 | 22 | Ti. 102.222 |
| 102.224 | 24 | Ti. 102.224 |
| 102.226 | 26 | Ti. 102.226 |
| 102.228 | 28 | Ti. 102.228 |
| 102.230 | 30 | Ti. 102.230 |
| 102.232 | 32 | Ti. 102.232 |
| 102.234 | 34 | Ti. 102.234 |
| 102.236 | 36 | Ti. 102.236 |
| 102.238 | 38 | Ti. 102.238 |
| 102.240 | 40 | Ti. 102.240 |
| 102.245 | 45 | Ti. 102.245 |
| 102.250 | 50 | Ti. 102.250 |
| 102.255 | 55 | Ti. 102.255 |
| 102.260 | 60 | Ti. 102.260 |
| – | 65 | Ti. 102.265 |
| – | 70 | Ti. 102.270 |
| – | 75 | Ti. 102.275 |
| – | 80 | Ti. 102.280 |
| – | 85 | Ti. 102.285 |
| – | 90 | Ti. 102.290 |
| – | 95 | Ti. 102.295 |
| – | 100 | Ti. 102.300 |
