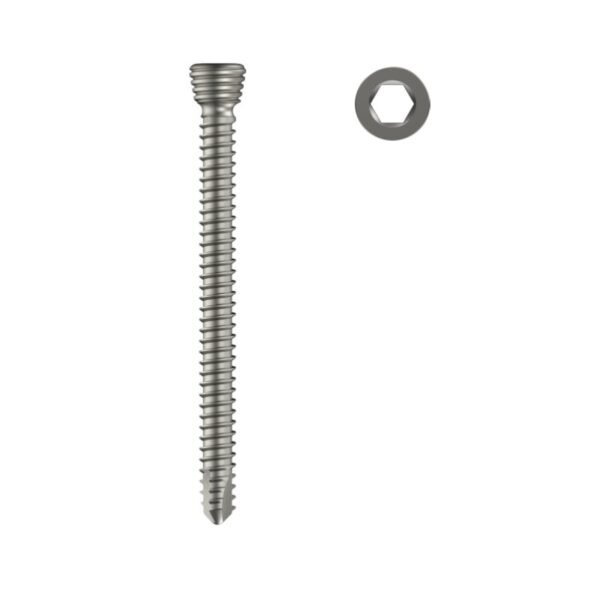

2.4mm Locking Head Screw – Self Tapping (HEXDRIVE)
| S.NO | CORRESPONDING INSTRUMENTS TO BE USE: | Cat. No. |
|---|---|---|
| 1 | Drill Bit Q.C. end 1.8mm X 140mm Long | 260.125 |
| 2 | LCP Drill Sleeve 2.4mm for 1.8mm Drill Bit | 804.130 |
| 3 | Hexagonal Screw Driver 2.0mm Tip | 301.031 |
| 4 | Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm) | 804.162 |
| 5 | Hexagonal Screw Driver Q.C.End Shaft – 2.0mm Tip (for Torque Handle 0.8Nm) | 804.166 |
| 6 | Hexagonal Screw Driver With Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking screws) | 301.024 |
| 7 | Mini Depth Gauge |
311.004 |
Description
| Cat. No. | Length (mm) | Cat. No. |
| Stainless Steel | Titanium | |
| 100.010 | 10 | Ti.100.010 |
| 100.012 | 12 | Ti.100.012 |
| 100.014 | 14 | Ti.100.014 |
| 100.016 | 16 | Ti.100.016 |
| 100.018 | 18 | Ti.100.018 |
| 100.020 | 20 | Ti.100.020 |
| 100.022 | 22 | Ti.100.022 |
| 100.024 | 24 | Ti.100.024 |
| 100.026 | 26 | Ti.100.026 |
| 100.028 | 28 | Ti.100.028 |
| 100.030 | 30 | Ti.100.030 |
